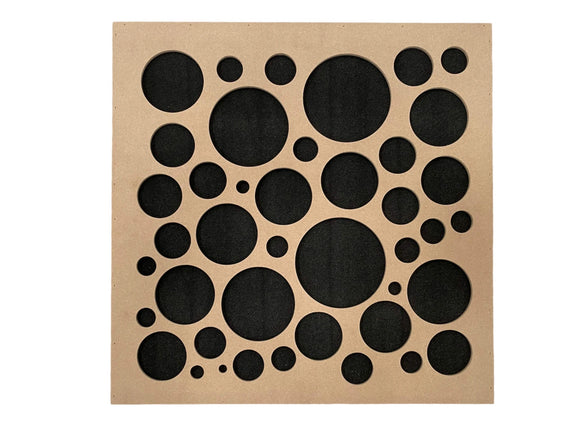

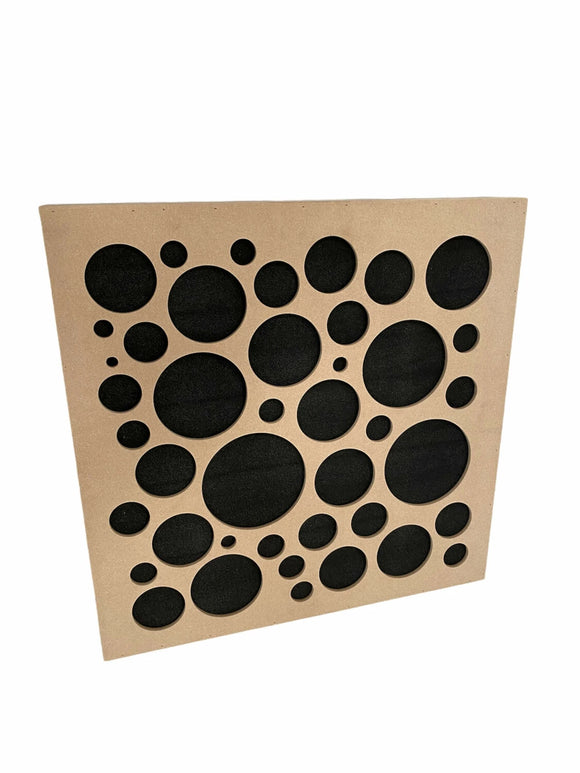

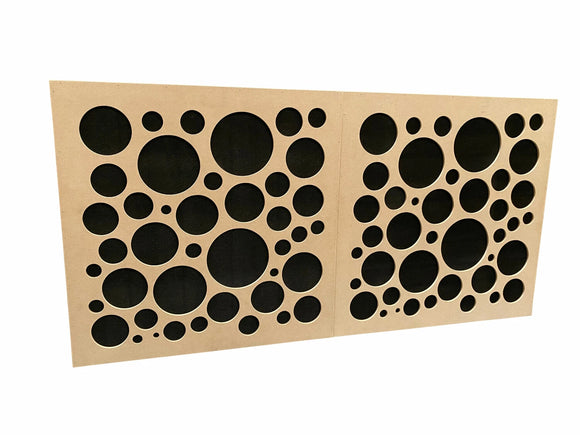

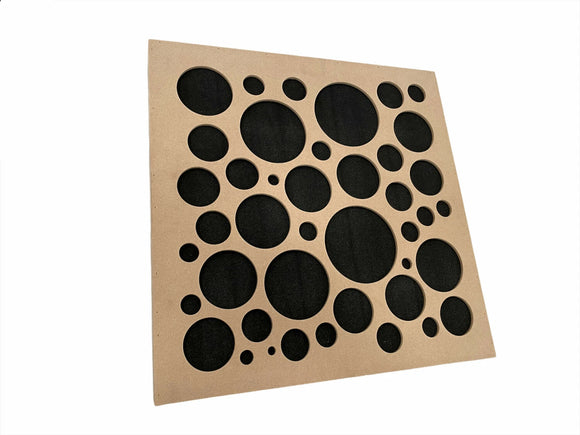

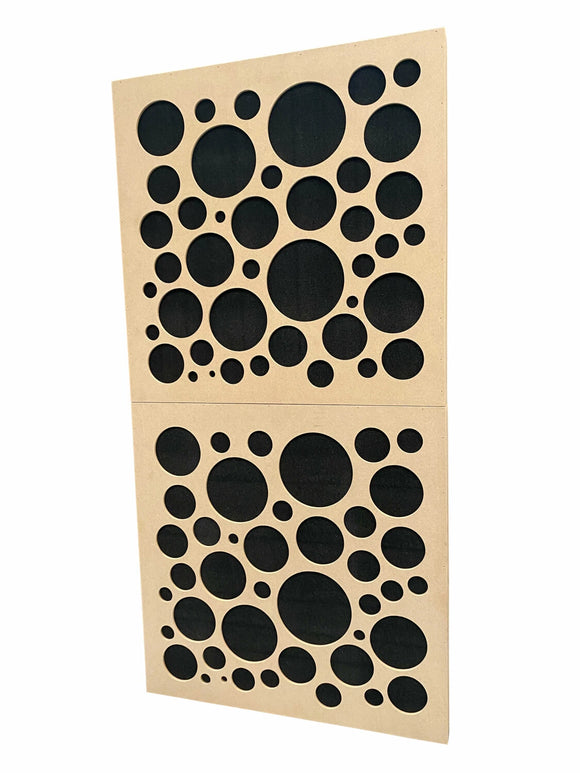

Advanced Acoustics GeoMetric Acoustic Panel - Circle - 600mm x 600mm
What's In The Box?
- The GeoMetric Acoustic Panel is sold individually.
- Each acoustic panel is sized 600mm by 600mm and is 62mm thick.
- One acoustic panel will cover an area of 0.36sqm.
- The acoustic panels are constructed from precision CNC cut 6MM MDF with a 50mm thick black acoustic foam insert.
- Each panel on average will absorb 70% of the sound waves.
- The MDF frames are supplied bare and can be painted any colour you prefer.
The panels are mounted to the wall with the tried and tested ButtonFix System which is a completely hidden mounting system which allows you to easily remove the panels from the wall or ceiling.
What Are The Benefits?
The main advantage and plus point with the GeoMetric Range of Acoustic Panels is that you can have them whatever colour you want. Gone are the days of being stuck with the same colour acoustic foam tiles, or flat plain fabric wrapped acoustic panels.
With the GeoMetric Acoustic Panels you simply remove the acoustic foam insert, paint the frame whatever colour you want, allow to dry and re-fit the insert, simple. Fancy a refresh, paint them again! Plus with an ever growing choice of design options were sure there's a design that suits your tastes.
We make sure that the design of each GeoMetric Panel has enough 'open area' so as not to inhibit the performance of the black acoustic foam insert. You can sure that whatever design you choose you'll gain complete control over your studio or listening room.
Installation is dead simple too. No more need to gluing acoustic tiles directly to the wall. The acoustic panels are fitted to the wall using a damage free system called the ButtonFix system. Three mounting points per panel ensure they mount securely to the wall or ceiling.
These acoustic panels work hard at controlling mid to high frequencies to help remove echo and control reverberation. Care is taken in optimising size, profile, foam cell structure and foam density to present a product that offers high visual and acoustic value.
Durability is high on our list of priorities too, the foam we use for the insert of these panels won't crumble and turn to dust and won't change colour as soon as you've mounted them to the wall or ceiling.. The bottom line is that the GeoMetric Acoustic Panels are the exciting future of acoustic treatment solutions.
Where Can I Use Them?
There are a wide range of applications for our acoustic products including:
- High End Professional Studios
- Home Studios
- Rehearsal Rooms
- Home Cinemas
- Dedicated Listening Rooms
- Public Buildings
- Professional and Home Offices
- And more
What Are The Technical Details?
| Product Name |
GeoMetric Acoustic Panel - Circle |
| Product Size |
600mm x 600mm x 62mm |
| Area Covered Per Panel |
0.36sqm |
| Product Colour |
Beige
|
| Product Weight |
|
| Fire Classification |
Fire Propagation Index - < 12 (BS 476 pt 6)
Surface Spread of Fame - Class 1 (BS 476 pt 7)
Building regs. 1991 (Fire Safety) - Class 0 (B S467 pt 6 & 7)
UL94 Classification - 94 V-O
Surface Burning Behaviour - Class A (ASTM E84-95)
|
| Acoustic Foam Density |
90kg/m3 |
| Sound Absorption Class |
C |
| Noise Reduction Coefficient |
0.70 |
| Absorption at 250Hz |
0.44 |
| Absorption at 500Hz |
0.70 |
| Absorption at 1000Hz |
0.82 |
| Absorption at 2000Hz |
0.87 |
| Absorption at 4000Hz |
1.03 |
Installation
The GeoMetric Acoustic Panels are supplied with everything you need to mount them onto the ceiling or the wall. The only thing you need to add are the fixing for the wall. Depending on its construction you’ll either need masonry wall plugs, or plasterboard wall plugs and suitable screws, around 40mm long.
The black clips are pre –mounted in the correct place on the back of the panel for you. The panels are designed to be oriented so that the foam insert can be pulled out of the bottom.
Insert the red marker tools into the black clips and push up until you hear a click. The point needs to be oriented outward. Offer the panel up the wall or ceiling in the exact location where you want to fit it. Press the panel against the mounting surface. The points will leave a mark where the green buttons need to be placed. Drill three holes where the marker has left an indentation. Mount the green buttons onto surface using suitable plug and screws. Remove the red marker tools from the black clips. Offer the panel up and push the panel down onto the green buttons.

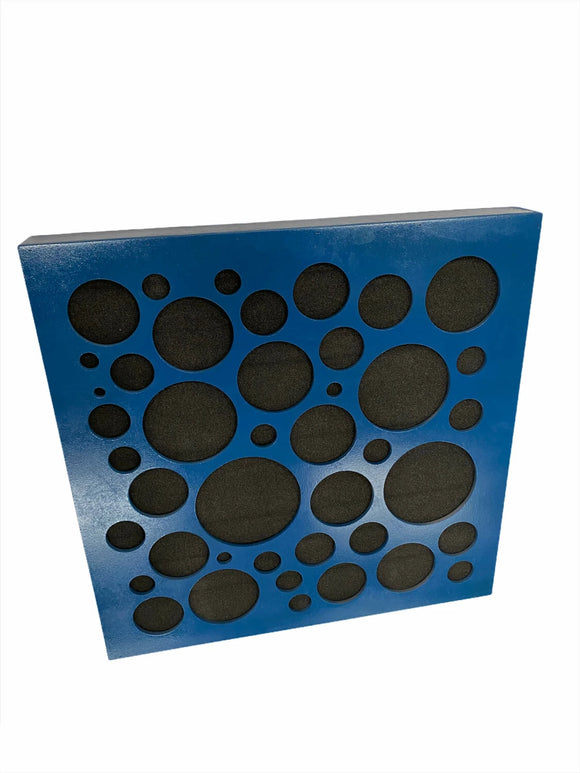

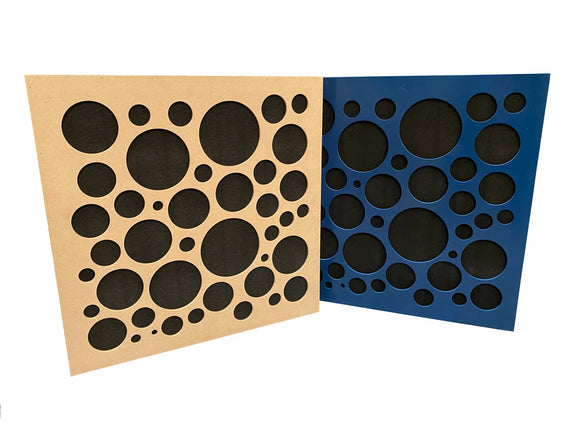

Painting Your Panels
The GeoMetric Acoustic Panels are dispatched bare and if you wish can be left like this and installed straight onto your wall. Or if you prefer you can paint the frames any colour you like without affecting performance. Before painting the frame we suggest that you remove the black clips from the back of the panel taking note of the orientation of the clips. Also make sure you keep the screws in a safe place so you don’t lose them.
You can now easily slide the foam insert out of the panel. The foam insert is designed to be snug so you may need to shake the frame so that the foam insert will begin to drop out. Once it begins to drop you can gently pull the insert out the rest of the way.
Before applying any paint first ensure the frame is clean and free of dust. For best results we would recommend that you first apply a coat of primer followed by two coats of your preferred colour following the paint manufacturer’s guidelines. Once the panel is completely dry you can re-insert the foam panel and re-attached the black clips ensuring the orientation is the same as they were previously.
The panel is now ready to be mounted onto the wall.
