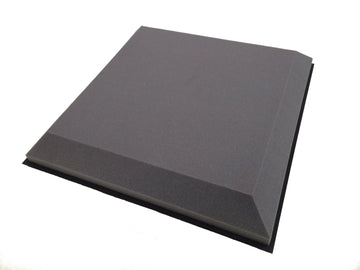

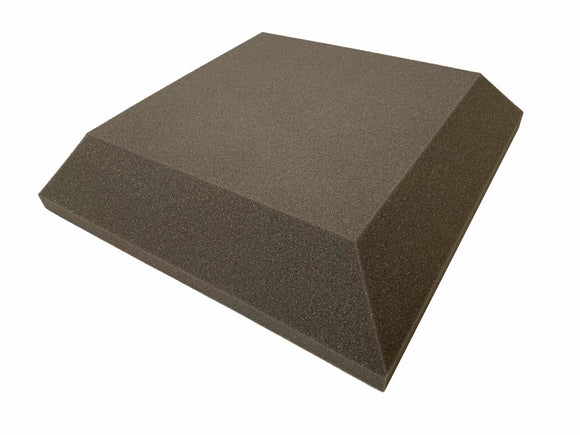

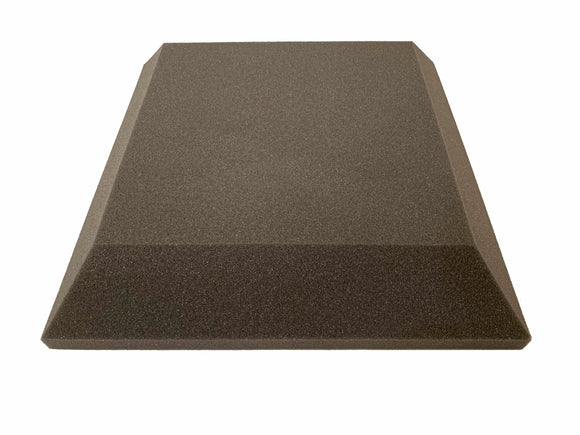

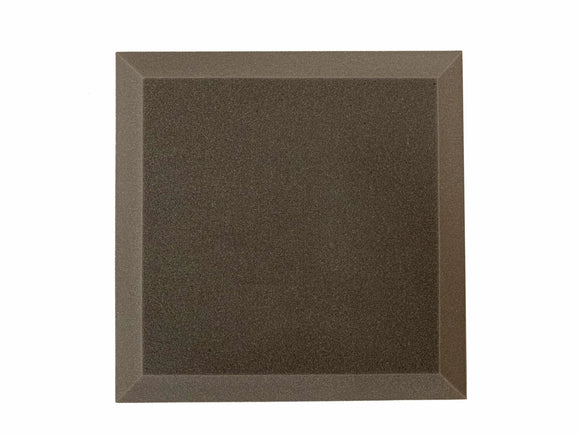

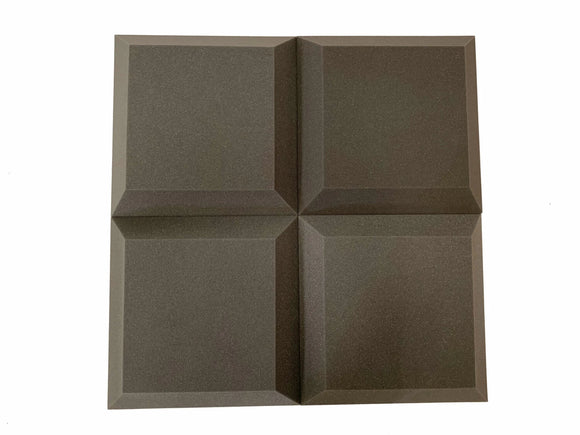

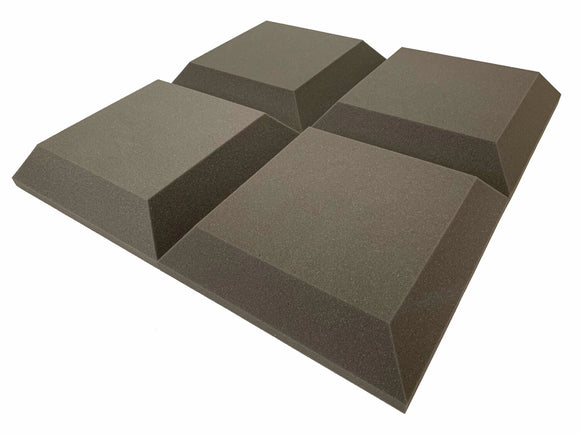

Advanced Acoustics 15" x 15" 3" Tegular Acoustic Studio Foam Tile Pack
What's In The Box?

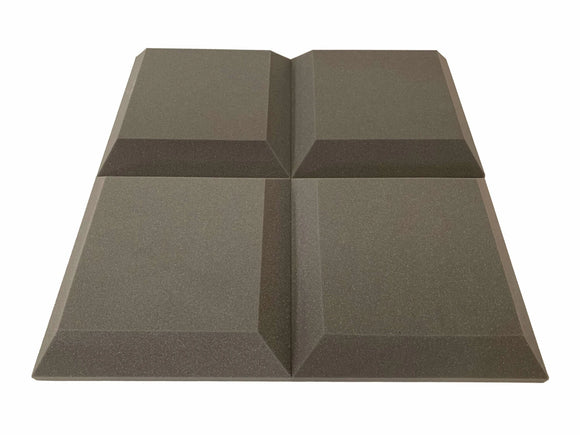

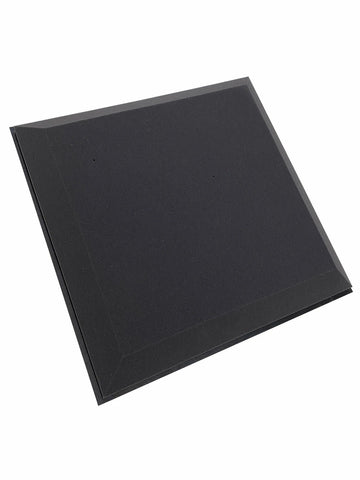

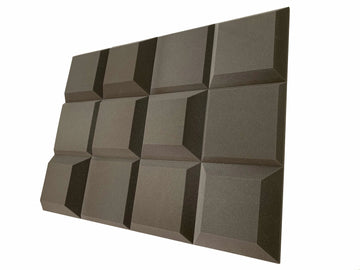

The 3" Tegular Acoustic Tile is a tile that is ideal for mixing with other profiled tiles such as the Wedge or F.A.T. Acoustic Tiles or Tegular Tiles of other thicknesses to help to break up the repetitiveness of a cluster of tiles. Including the odd 3" Tegular Acoustic Tile to create a little variation or using it to create a checkerboard effect has been used by many with great results. Or if you prefer use this tile on it's own, the possibilities are endless. Included in a box are 24 individual acoustic foam tiles. Each tile is 381mm (15") by 381mm (15") and are 75mm thick. A box of these tiles will cover a total area of 3.48sqm (37.5sqft). The NRC of the 3" Tegular Acoustic Tiles is 0.95 so you know that however you decide to use them, they'll give you the balanced rate of absorption you need. The 3" Tegular Acoustic Tiles are available in a choice of Mid Grey or Dark Grey and will arrive to you completely uncompressed ready to be installed straight away.
What Are The Benefits?
The design of these tiles might look simple enough but don't underestimate the effectiveness that these acoustic tiles have to offer. By installing small clusters of these acoustic tiles in a square or diamond orientation around the room at first reflection points or at other key areas you will increase acoustic clarity and remove unwanted distortion. These acoustic tiles can also be layered to further improve mid and lower frequency absorption.

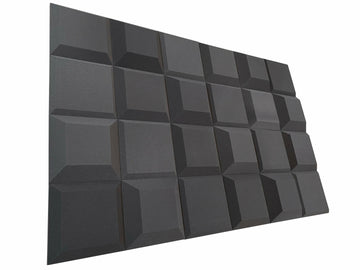

These acoustic studio foam tiles work hard at controlling mid to high frequencies to help remove echo and control reverberation. These tiles can also be mixed with our other 15" Studio Foam Tiles to create a unique design. Care is taken in optimising size, profile, foam cell structure and foam density to present a product that offers high visual and acoustic value.
Durability is high on our list of priorities too, we manufacture a foam that won't crumble and turn to dust and won't change colour as soon as you've mounted them to the wall or ceiling. The bottom line is that the 3" Tegular Acoustic Studio Foam Tiles will assist both you and your room in working to it's full potential.
Where Can I Use Them?
There are a wide range of applications for our acoustic products including:
- High End Professional Studios
- Home Studios
- Rehearsal Rooms
- Home Cinemas
- Dedicated Listening Rooms
- Public Buildings
- Professional and Home Offices
- Server Rooms
- And more
What Are The Technical Details?
||15" 3" Tegular Acoustic Tile Pack
|Individual Acoustic Tile Size
||15" x 15" (381mm x 381mm)
|Quantity Of Acoustic Tiles Per Box
|Total Area Covered Per Box
|Acoustic Tile Thickness
||1" (25mm) at the base, 3" (75mm) at the peak
|Noise Reduction Coefficient (NRC)
|Absorption at 250Hz
|Absorption at 500Hz
|Absorption at 1000Hz
|Absorption at 2000Hz
|Absorption at 4000Hz
|Acoustic Foam Colour
|Acoustic Foam Density
|Acoustic Foam Composition
||Open Cell Polyurethane Acoustic Foam
||Crib 5 and Schedule 1, Part 1 of the Furnishings and Furniture (fire)(safety) Regulations 1988 (amended 1989)
||Plain faced acoustic foam tile with a 450 taper on all 4 sides
Installing our acoustic foam tiles is very simple. The first step to take is to work out your preferred layout of acoustic tiles. Do a sketch on paper first to make sure that the layout looks right and you have enough acoustic foam and space for your planned design. It is best to have small to medium sized clusters of acoustic foam tiles evenly distributed as opposed to one huge cluster of tiles in the middle of a wall.
Once the acoustic tiles are mounted to the wall or ceiling they are hard to remove so it is important to get the layout right before you begin. Once you have a sketch of the layout you plan you can then mark up the wall with the layout. You can either use pencil, masking tape or lasers to layout the design on the wall or ceiling.
When mounting the acoustic tiles to the wall apply Advanced Acoustics Contact Adhesive to both the back of the tile and the mounting surface. There is no need to heavily cover the acoustic foam or wall with adhesive, a band of adhesive around the perimeter of the tile along with 50% - 75% coverage of the rest of the tile will be fine. Use the same equivalent amount on the wall. Avoid overspray on the tile and the wall so that adhesive can’t be seen when the tiles are in place. Masking Tape on the wall will help with this. If you do get webbing overspray on the tile, don’t touch it, allow it to dry, in most cases you will be able to peel the adhesive off.
The adhesive we supply is solvent based so we recommend that you keep all doors of the room and any windows open whilst completing the installation.
If you prefer to have a more temporary installation of acoustic tiles you can mount the tiles onto 6mm MDF or ply to create panels of acoustic tiles. These panels can then be hung on the wall using a D-Ring and picture hook for a damage free installation. If fitting them to a ceiling then 4 mirror plates would be required.
