Advanced Acoustics Bass Trap Corner Fill 12" x 12" x 12"


What's In The Box?

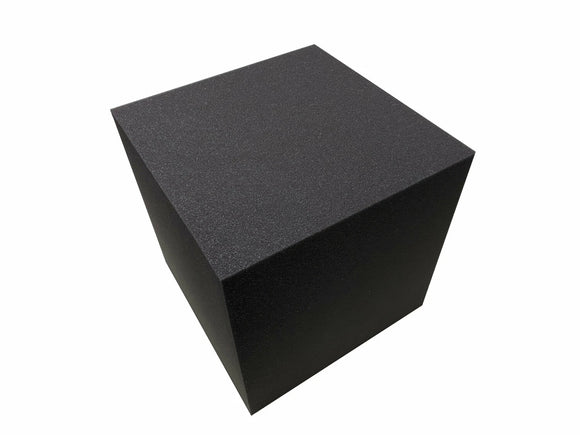

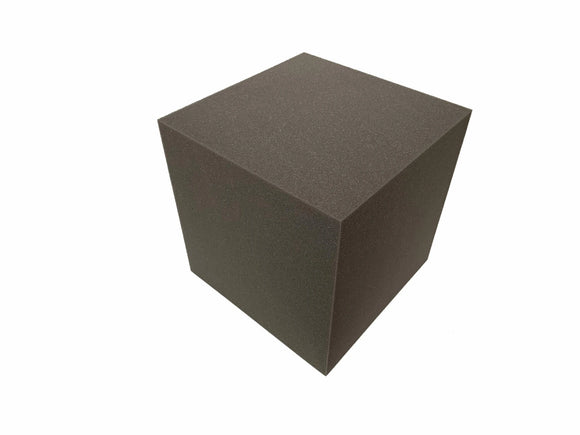

The Bass Trap Corner Fills are sold as single units.  The dimension of the corner fill is 305mm (12") by 305mm (12") by 305mm (12").  They are designed to be used in conjunction with any of our 12" wide bass traps to allow you to effectively treat the tri-corner - the corner where the two walls and the ceiling meet.  Treating this area will drastically improve the rooms frequency response.  It also gives a much neater finish when butting the bass traps up to the ceiling corner.  This area is wasted space so makes much sense to turn it into an area for additional absorption.  They are available in either Mid Grey or Dark Grey.


What Are The Benefits?


Sometimes the simplest method is the best method.  These bass traps are a simple design but don't confuse simple with useless.  Bass Traps are vital for any studio design and should be one of the top priorities of studio design.  Once effective bass control has been installed standing waves are minimised and low end build up is brought under control.

Low end energy congregates in all corners of rooms so by placing effective bass traps in the corners you can reduce the detrimental effect this has.  When used in conjunction with our range of acoustic tiles the full scope of frequencies generated is taken care of.

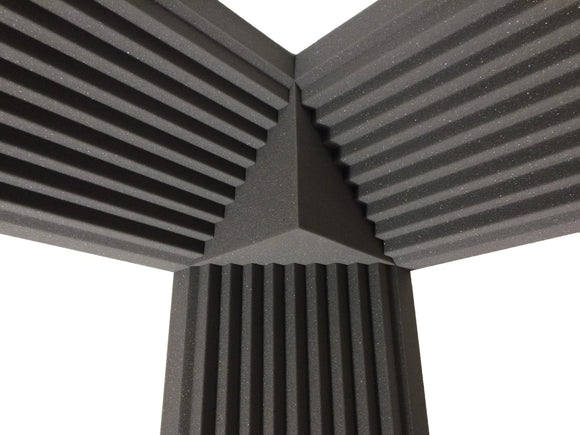

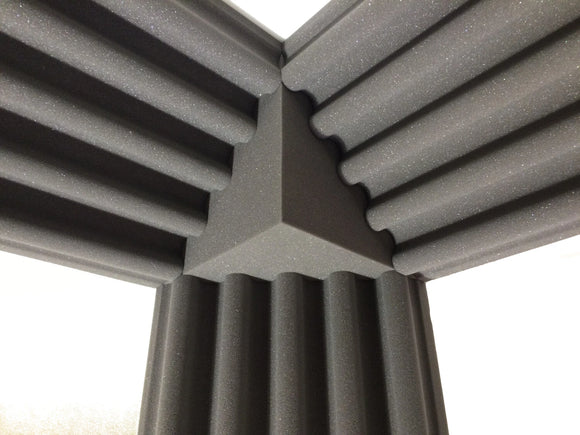

The Bass Trap Corner Fill enables you easily treat the tri-corner by placing this cube in the corner where the two walls and ceiling meet.  Once installed you can fit any of our 12" wide bass traps up to each exposed side.  Using the Bass Trap Corner Fills gives a much neater finish compared to trying to cut bass traps at 450 angles.

Care is taken in optimising size, profile, foam cell structure and foam density to present a product that offers high visual and acoustic value.  Durability is high on our list of priorities too, we manufacture a foam that won't crumble and turn to dust and won't change colour as soon as you've mounted them in the corners. The bottom line is that the Original Bass Traps will assist both you and your room in working to it's full potential.


Where Can I Use Them?


There are a wide range of applications for our acoustic products including:

  • High End Professional Studios
  • Home Studios
  • Rehearsal Rooms
  • Home Cinemas
  • Dedicated Listening Rooms
  • And more


What Are The Technical Details?


Product Name Bass Trap Corner Fill
Individual Bass Trap Size 12" x 12" x 12" (305mm x 305mm x 305mm)
Quantity Of Bass Traps Per Box 1
Equivalent Absorption Area Per Object 50Hz 0.1
Equivalent Absorption Area Per Object 63Hz 0.2
Equivalent Absorption Area Per Object 80Hz 0.2
Equivalent Absorption Area Per Object 100Hz 0.6
Equivalent Absorption Area Per Object 125Hz 0.6
Equivalent Absorption Area Per Object 160Hz 0.5
Acoustic Foam Colour Charcoal Grey
Acoustic Foam Density 30kg/m3
Acoustic Foam Composition Open Cell Polyurethane Acoustic Foam
Fire Classification Crib 5 and Schedule 1, Part 1 of the Furnishings and Furniture (fire)(safety) Regulations 1988 (amended 1989)
Profile Description Precision CNC cut plain faced triangle corner mounted bass trap


Performance Data

Bass Trap Corner Fill Performance Data
