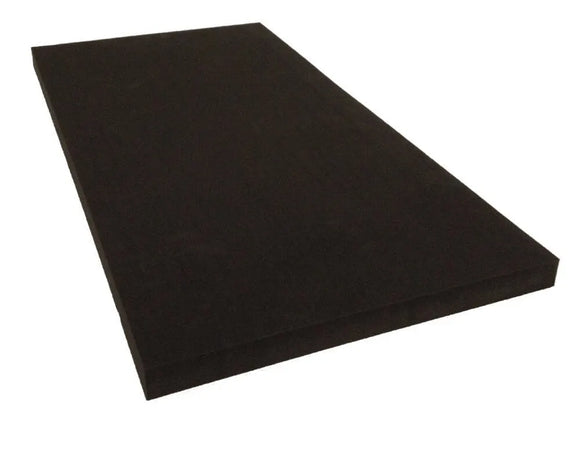

Advanced Acoustics 2" Class 0 Acoustic Foam Treatment Panel
What's In The Box?
- The 2" Class 0 Panel is sold individually.
- Each acoustic foam panel is sized 24" (610mm) by 48" (1220mm) and is 2" (50mm) thick.
- One acoustic treatment panel will cover an area of 8sqft (0.744sqm).
- The acoustic panels are precision cut and on average will absorb 70% of the sound waves.
- The colour of these studio foam sound deadening panels is black and have a Class 0 fire rating.
There is also the option to have the panels mounted onto 6mm MDF so that you can easily fix mirror plates or a D-Ring to the back of the panels for easy, damage free mounting.
What Are The Benefits?
The Class 0 Acoustic Panel is a very versatile panel. These panels can be easily trimmed and cut to size with a sharp knife. They can be used for building custom enclosures or they can be wrapped in your own open weave cloth to make your own acoustic panels or simply left as they are and mounted to the wall or ceiling.
By installing these acoustic panels in the room at first reflection points or at other key areas you will increase acoustic clarity and remove unwanted distortion. These acoustic panels work hard at controlling mid to high frequencies to help remove echo and control reverberation.
These panels can also be used in conjunction with our other acoustic panels to create a unique design. Care is taken in optimising size, profile, foam cell structure and foam density to present a product that offers high visual and acoustic value.
Durability is high on our list of priorities too, we manufacture a foam that won't crumble and turn to dust and won't change colour as soon as you've mounted them to the wall or ceiling. The bottom line is that the Class 0 Acoustic Panels will assist both you and your room in working to it's full potential whilst meeting the highest fire ratings.
Where Can I Use Them?
There are a wide range of applications for our acoustic products including:
- High End Professional Studios
- Home Studios
- Rehearsal Rooms
- Home Cinemas
- Dedicated Listening Rooms
- Public Buildings
- Professional and Home Offices
- Server Rooms
- Custom Enclosures
- And more
What Are The Technical Details?
||2" Class 0 Acoustic Panel
|Individual Acoustic Tile Size
||24" x 48" (610mm x 1220mm)
|Quantity Of Acoustic Tiles Per Box
|Total Area Covered Per Box
|Acoustic Tile Thickness
|Noise Reduction Coefficient (NRC)
|Absorption at 250Hz
|Absorption at 500Hz
|Absorption at 1000Hz
|Absorption at 2000Hz
|Absorption at 4000Hz
|Acoustic Foam Colour
|Acoustic Foam Density
|Acoustic Foam Composition
||Open Cell Polyurethane Acoustic Foam
||Fire Propagation Index - < 12 (BS 476 pt 6)
Surface Spread of Fame - Class 1 (BS 476 pt 7)
Building regs. 1991 (Fire Safety) - Class 0 (B S467 pt 6 & 7)
UL94 Classification - 94 V-O
Surface Burning Behaviour - Class A (ASTM E84-95)
||Precision cut acoustic foam panel
Installing our acoustic foam panels is very simple. The first step to take is to work out your preferred layout of acoustic panels. Do a sketch on paper first to make sure that the layout looks right and you have enough acoustic foam and space for your planned design.
Once the acoustic panels are mounted to the wall or ceiling they are hard to remove so it is important to get the layout right before you begin. Once you have a sketch of the layout you plan you can then mark up the wall with the layout. You can either use pencil, masking tape or lasers to layout the design on the wall or ceiling.
When mounting the acoustic panels to the wall apply Advanced Acoustics Contact Adhesive to both the back of the panel and the mounting surface. There is no need to heavily cover the acoustic foam or wall with adhesive, a band of adhesive around the perimeter of the tile along with 50% - 75% coverage of the rest of the acoustic panel will be fine. Use the same equivalent amount on the wall. Avoid overspray on the tile and the wall so that adhesive can’t be seen when the panels are in place. Masking Tape on the wall will help with this. If you do get webbing overspray on the foam panel, don’t touch it, allow it to dry, in most cases you will be able to peel the adhesive off.
The adhesive we supply is solvent based so we recommend that you keep all doors of the room and any windows open whilst completing the installation.
If you prefer to have a more temporary installation of acoustic panels there is the option to have the panels pre-mounted onto 6mm MDF. This will enable you to hang the panels on the wall using a D-Ring (not supplied) and picture hook for a damage free installation. If fitting them to a ceiling then 4 mirror plates (not supplied) would be required.
