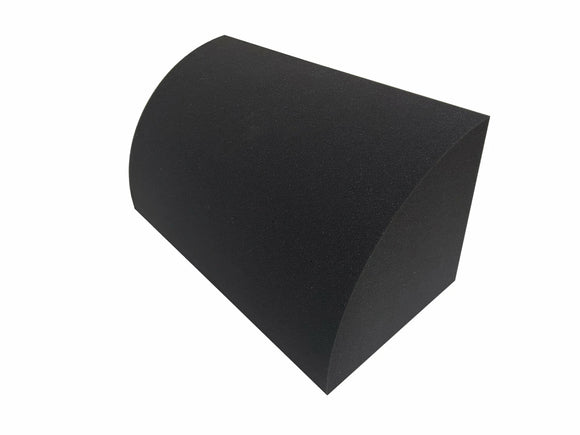

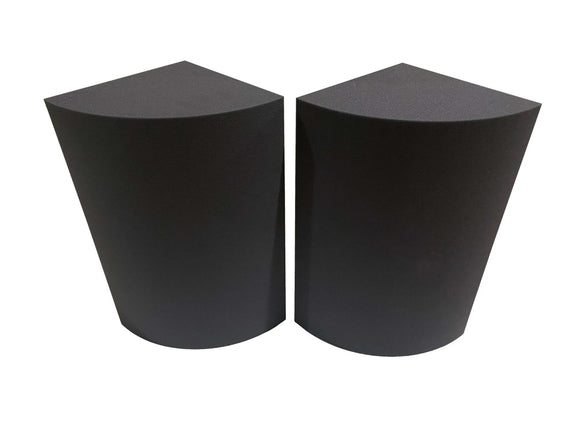

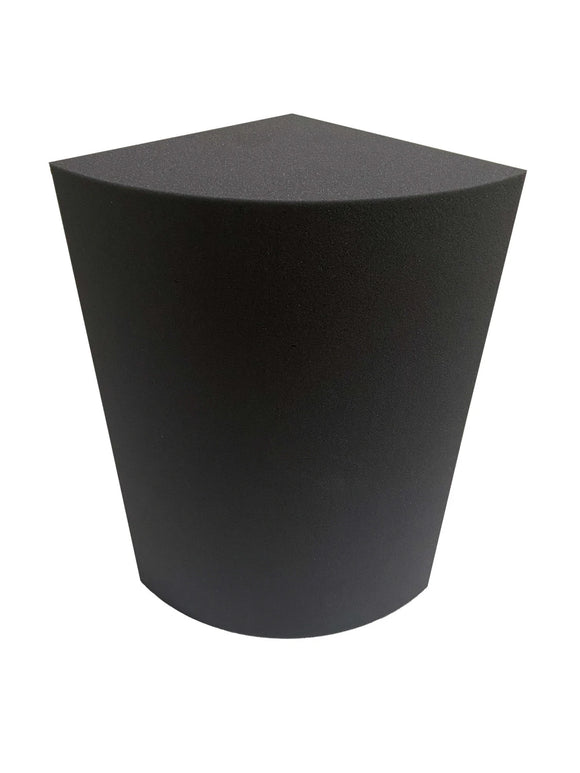

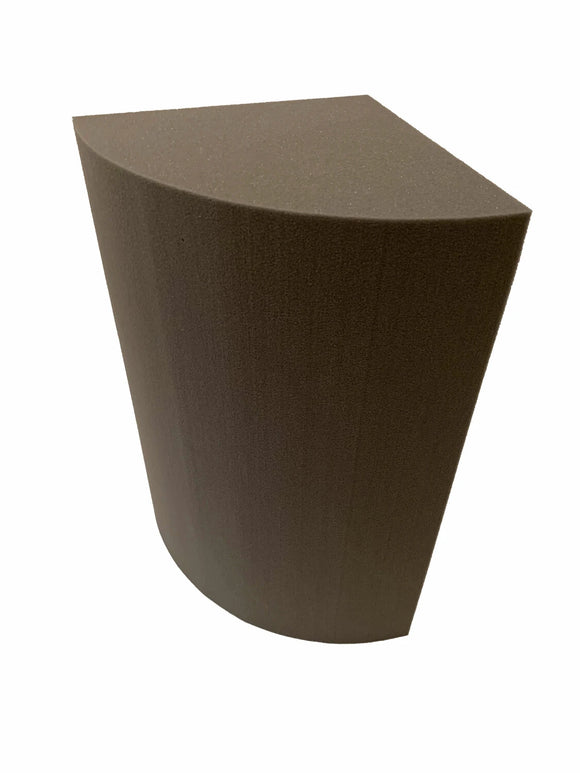

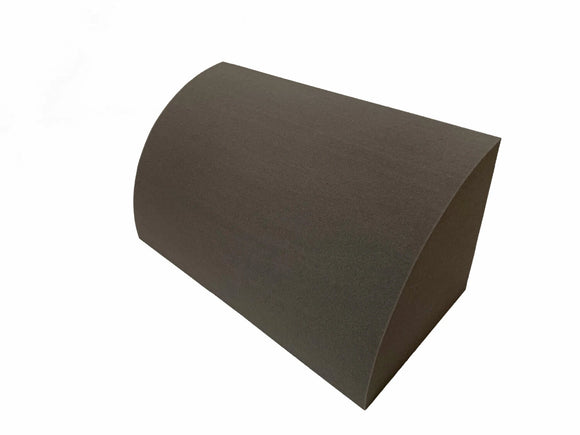

Advanced Acoustics 2ft Quadrant Bass Trap 12" x 12"
What's In The Box?
The Quadrant Bass Traps are sold as single units. The dimension of the bass trap is 305mm (12") wide and 610mm (24") long. The overall width of the face is 430mm. The unique shape of the Quadrant Bass Trap means that there is a vastly increased surface area per bass traps over plain faced bass traps. The 2ft Quadrant Bass Trap is effective down to 40Hz. Unlike other companies our acoustic foam products are dispatched uncompressed and ready to be installed immediately. The Quadrant Bass Trap is produced in our UK production facility using precise CNC machines. They are available in a choice of Mid Grey or Dark Grey.
What Are The Benefits?
When it comes to bass control and low frequency absorption mass and depth of material is king. The curved face that the Quadrant Bass Traps have to offer results in increased surface area over standard shaped bass traps. The extra depth generated from this unique profile helps to improve low frequency absorption even further.
Bass Traps are vital for any studio design and should be one of the top priorities of studio design. Once effective bass control has been installed standing waves are minimised and low end build up is brought under control.
Low end energy congregates in all corners of rooms so by placing effective bass traps in the corners you can reduce the detrimental effect this has. When used in conjunction with our range of acoustic tiles the full scope of frequencies generated is taken care of.
Care is taken in optimising size, profile, foam cell structure and foam density to present a product that offers high visual and acoustic value. Durability is high on our list of priorities too, we manufacture a foam that won't crumble and turn to dust and won't change colour as soon as you've mounted them in the corners.
The bottom line is that the Quadrant Bass Traps will assist both you and your room in working to it's full potential.
Where Can I Use Them?
There are a wide range of applications for our acoustic products including:
- High End Professional Studios
- Home Studios
- Rehearsal Rooms
- Home Cinemas
- Dedicated Listening Rooms
- And more
What Are The Technical Details?
| Product Name |
2ft Quadrant Bass Trap |
| Individual Bass Trap Size |
12" x 12" x 24" (305mm x 305mm x 610mm) |
| Quantity Of Bass Traps Per Box |
1 |
| Equivalent Absorption Area Per Object 50Hz |
0.2 |
| Equivalent Absorption Area Per Object 63Hz |
0.4 |
| Equivalent Absorption Area Per Object 80Hz |
0.2 |
| Equivalent Absorption Area Per Object 100Hz |
0.6 |
| Equivalent Absorption Area Per Object 125Hz |
0.5 |
| Equivalent Absorption Area Per Object 150Hz |
0.7 |
| Acoustic Foam Colour |
Charcoal Grey |
| Acoustic Foam Density |
30kg/m3 |
| Acoustic Foam Composition |
Open Cell Polyurethane Acoustic Foam |
| Fire Classification |
Crib 5 and Schedule 1, Part 1 of the Furnishings and Furniture (fire)(safety) Regulations 1988 (amended 1989) |
| Profile Description |
Precision CNC cut triangle bass trap with a quarter circle face |
Performance Data
Installing our Corner Foam Bass Traps is very simple. The first step to take is to work out your correct placement and preferred layout of bass traps. Do a sketch on paper first to make sure that the layout looks right and you have enough bass traps and space for your planned design.
Once the acoustic foam bass traps are mounted they are hard to remove so it is important to get the layout right before you begin. Once you have a sketch of the layout you plan you can then mark up the wall with the layout. You can either use pencil, masking tape or lasers to layout the design.
When mounting the bass traps in the corners apply Advanced Acoustics Contact Adhesive to both the back of the bass trap and the mounting surface. There is no need to heavily cover the bass trap or wall with adhesive, a band of adhesive around the perimeter of the bass trap along with 50% - 75% coverage of the rest of the bass trap will be fine. Use the same equivalent amount on the wall. Avoid overspray on the bass traps and the corners so that adhesive can’t be seen when they are in place. Masking Tape on the wall will help with this. If you do get webbing overspray on the bass trap, don’t touch it, allow it to dry, in most cases you will be able to peel the adhesive off.
The adhesive we supply is solvent based so we recommend that you keep all doors of the room and any windows open whilst completing the installation.
