Silent Floor Ultra Acoustic Underlay - 600mm by 1200mm by 11mm thick
What's In The Box?
- The Bulk Pallet of Silent Floor Ultra contains 100 sheets.

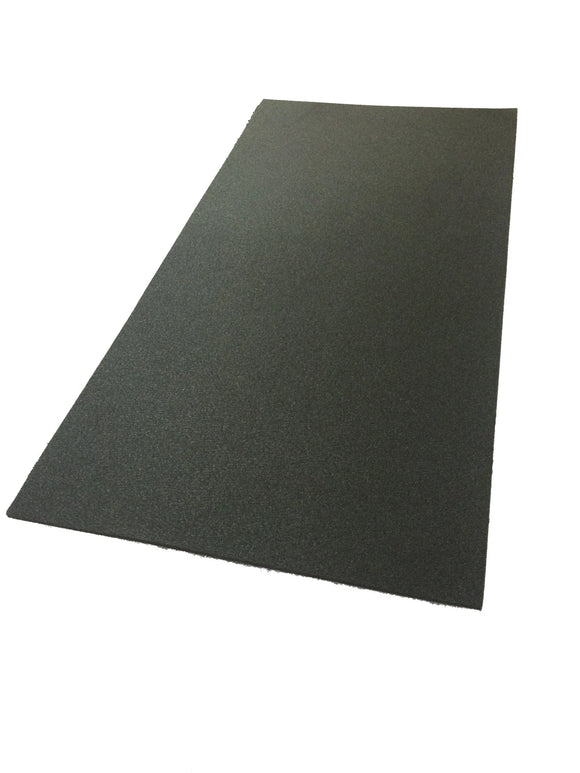

- Each sheet is 600mm x 1200mm and is 11mm thick.
- One pallet will cover an area of 72sqm.

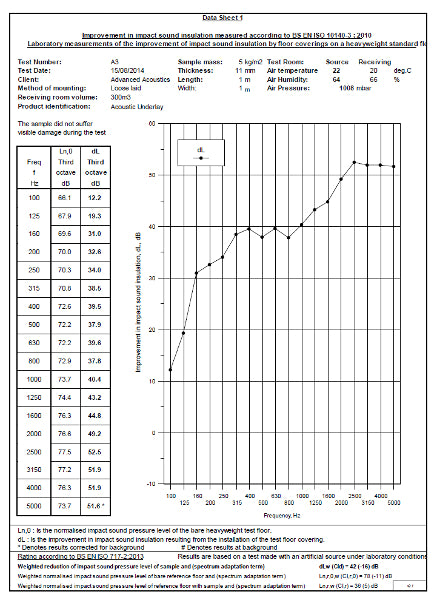

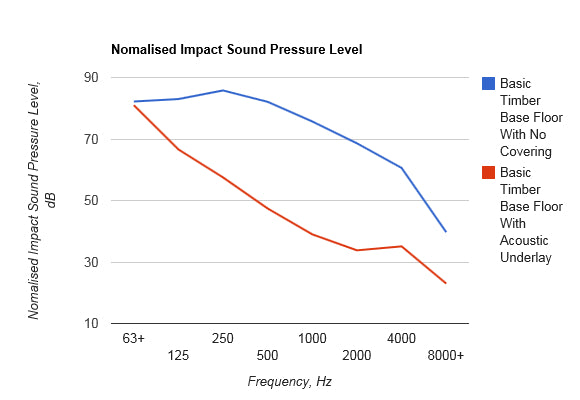

- Impact Sound Reduction of 36dB.
What Are The Benefits?

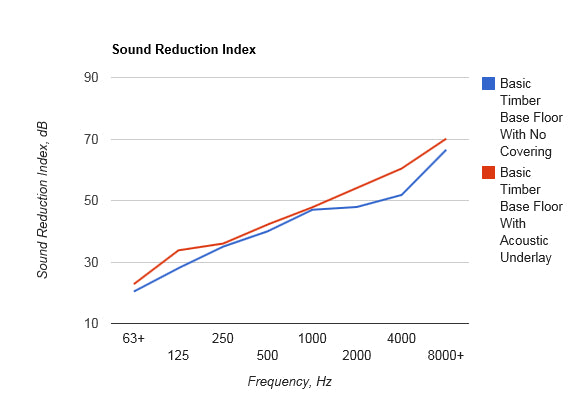

Silent Floor Ultra is a genuine acoustic underlay. This product will work to reduce impact noise caused by walking and dragging items across or dropping items on the floor. The Silent Floor Ultra will also reduce airborne noise such as talking, TV and radio noise.
It is simple product to install, it is just laid in exactly the same way a regular underlay, the only difference being this product comes in sheets as opposed to rolls. Being only 11mm thick it is no thicker than standard underlays so won't cause issues with door gaps or transitions between different floor types.

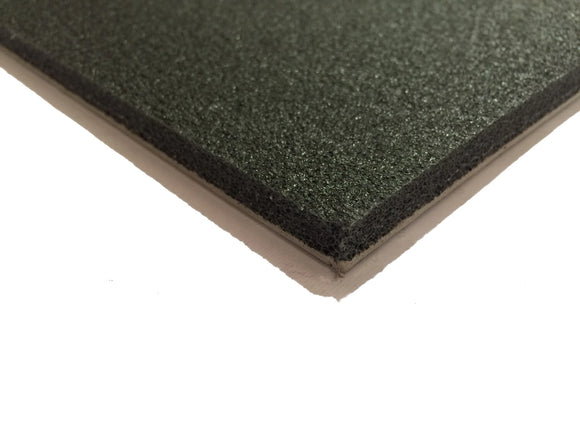

The Silent Floor Ultra is a composite of our extremely popular 5kg soundproofing mat with a layer of high durability 25kg/m3 closed cell cross linked PU foam which gives a feel of luxury under foot.
The benefit of using a PU foam as opposed to a recycled crumb foam that is used by so many companies is that the PU foam won't start to crumble and break down over a short period of time.
For Use Under Carpet.
This product can be used with traditional stretched carpets. When installing this product below carpet fit The Silent Floor Ultra so it is foam side up. Make sure there are no gaps between the sheets.
If is good practice to glue the sheets down to the sub-floor with our contact adhesive to minimise the chances of underlay 'walking'. The sheets are simply trimmed with a sharp knife when required. You can now proceed to install the carpet in the normal way.
To improve sound isolation even further there are a few simple steps you can take before installing the Silent Floor Ultra. To minimise the risk of squeaking floor boards check that there are no loose boards before the Silent Floor installed. If there are any loose screw them down to the joists ensuring there are no pipes or cables behind the board before you do so.
If you have gaps between floorboards it is good practice to seal and fill these with our Acoustic Sealant. Before you install the Silent Floor Ultra you can lay one or two layers of the 5kg Soundproofing Mat first. This will help to improve airborne sound isolation even further and will only increase the floor thickness by a few millimetres.
What Are The Technical Details?
||Silent Floor Ultra Acoustic Underlay
||600mm x 1200m (nominal)
|Area Covered Per Pallet
||76 (Durometer Shore A, 1 sec dwell)
|Elongation At Break
||2% (4hr @ 100oC)
||<100 mm/min (FMVSS 302)
First ensure that the floor is completely clean, free of dirt and debris. Before you begin installation it is good practice to ensure that there are no loose floorboards. Loose boards can squeak and once the basic floor system has been fitted there won’t be any access to the floorboards. When screwing the floorboards down ensure that you will not screw through pipes or cables. If possible remove existing skirting so that you can run the soundproofing mat right up to the wall.
1. Seal any gaps in the floorboards with AC95 Acoustic Sealant. If there are holes that are too large for sealant repair the floor with replacement boards.
2. Lay the first layer of Soundproofing mat on the floor in the direction perpendicular to the direction of the floorboards. Glue the soundproofing mat down using Advanced Acoustics Contact Adhesive to minimise ‘walking’ of materials. Lay the soundproofing mat right up to the edges of the room folding it up the wall by approximately 40mm. Use a Joint Roller to assist in folding the mat right into the corner. This will help to minimise flanking sound. When laying the soundproofing may ensure there are no gaps between sheets.
3. Tape all the joints with Jointing Tape.
4. If you have opted for a second layer of soundproofing mat lay this perpendicular to the first layer of soundproofing mat, again ensuring you leave no gaps. Glue the soundproofing mat down as you go. Fold the matting up the walls approximately 40mm.
5. Again tape all the joints with jointing tape.
6. You can now refit your skirting.
7. Fix your carpet gripper in place fixing through the matting to the floorboards underneath.
8. Lay the Silent Floor Ultra in a brick bond fashion, perpendicular to your previous layer of soundproofing mat. Ensure there are no gaps. It should be fitted foam side up. The Silent Floor Ultra should be butted up to the carpet gripper.
9. Tape the joints with Jointing Tape.
10. You are now ready to install the carpet.
