Wedge 30" Acoustic Studio Foam Tile Pack - 6 Tiles, 3.48sqm Coverage


VAT includedShipping calculated at checkout

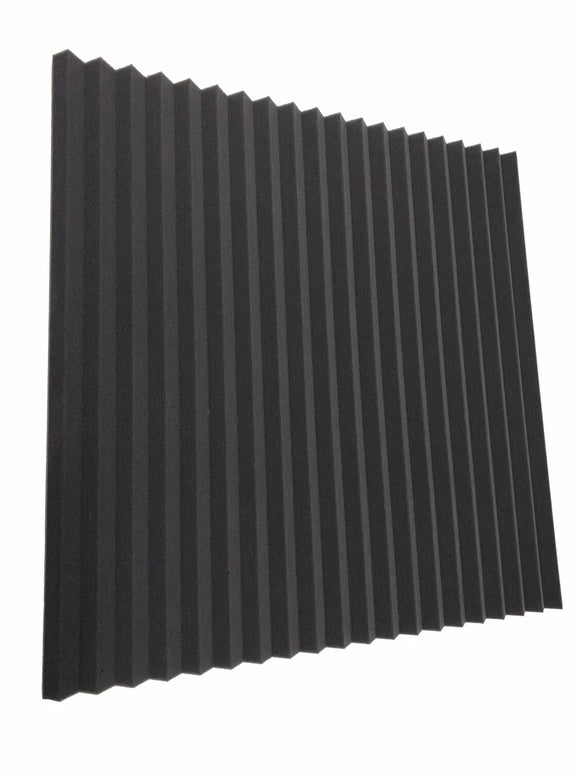

Dark Grey
Mid Grey

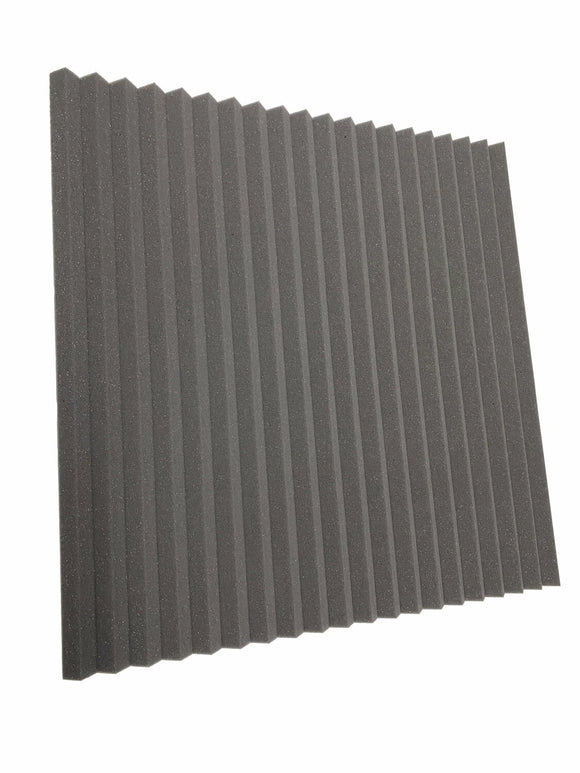

Advanced Acoustics 30" x 30" Wedge Acoustic Studio Foam Tile Pack


What's In The Box?


The 30" Wedge Acoustic Tile Pack is an instantly recognisable acoustic treatment product used widely amongst studios. It is a highly effective studio tile, offering a large surface area and is a classic design. These tiles have an NRC of 0.6. Included in each pack are 6 acoustic foam tiles. The individual tiles are 762mm (30") by 762mm (30"). Each pack covers a total area of 3.48sqm (37.5sqft). The 30" Wedge Acoustic Tiles are 40mm thick. We also offer a 'PRO' version with 75mm thick tiles if a thicker version is required. The Wedge Acoustic Tiles are made using precise CNC machinery in our UK facility to ensure a perfect tile every time. All of our products are shipped out completely uncompressed and are ready to be installed as soon as they are received. This range of tiles comes with the option of Mid Grey or Dark Grey in colour.


What Are The Benefits?


The wedge profile is the most popular design of profile used for professional and home studios, vocal booths, cinema rooms and more.  This classic cut of profile is clean and consistent and makes installation simple.  Performance is up there too thanks to the large surface area from the extreme slopes.

By installing small clusters of these acoustic tiles in a random orientation around the room at first reflection points or other key areas you will increase acoustic clarity and remove unwanted distortion.  These acoustic studio foam tiles work hard at controlling mid to high frequencies to help remove echo and control reverberation.  These tiles can also be mixed with our other 30" Studio Foam Tiles to create a unique design.

Care is taken in optimising size, profile, foam cell structure and foam density to present a product that offers high visual and acoustic value.  Durability is high on our list of priorities too, we manufacture a foam that won't crumble and turn to dust and won't change colour as soon as you've mounted them to the wall or ceiling. The bottom line is that the Wedge Acoustic Studio Foam Tiles will assist both you and your room in working to it's full potential.


Where Can I Use Them?


There are a wide range of applications for our acoustic products including:

  • High End Professional Studios
  • Home Studios
  • Rehearsal Rooms
  • Home Cinemas
  • Dedicated Listening Rooms
  • Public Buildings
  • Professional and Home Offices
  • Server Rooms
  • And more


What Are The Technical Details?


Product Name 30" Wedge Acoustic Tile Pack
Individual Acoustic Tile Size 30" x 30" (762mm x 762mm)
Quantity Of Acoustic Tiles Per Box 6
Total Area Covered Per Box 37.5ft2 (3.48m2)
Acoustic Tile Thickness 3/4" (20mm) at the base, 1 1/2" (40mm) at the peak
Noise Reduction Coefficient (NRC) 0.60
Absorption at 250Hz 0.25
Absorption at 500Hz 0.47
Absorption at 1000Hz 0.69
Absorption at 2000Hz 1.00
Absorption at 4000Hz 1.19
Acoustic Foam Colour Charcoal Grey
Acoustic Foam Density 30kg/m3
Acoustic Foam Composition Open Cell Polyurethane Acoustic Foam
Fire Classification Crib 5 and Schedule 1, Part 1 of the Furnishings and Furniture (fire)(safety) Regulations 1988 (amended 1989)
Profile Description Precision CNC cut Wedge Profile with 1 1/2" (40mm) between peaks


Performance Data

Wedge Standard Acoustic Tile Performance Data
