Advanced Acoustics Drum Isolation Kit 6ft x 8ft
What's In The Box?
- Contained in one box are 8 Drum Isolation Pad Risers.
- There are enough pads to create a platform sized 6ft x 8ft.

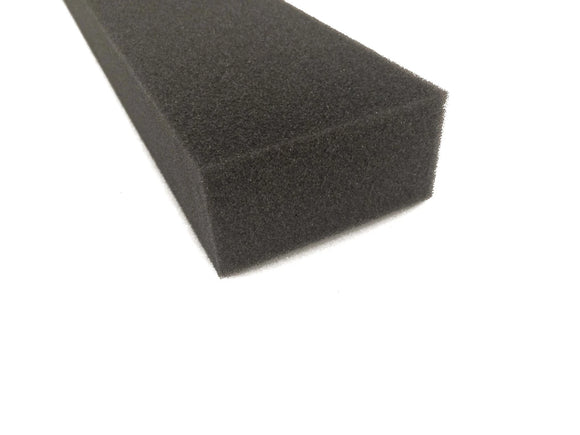

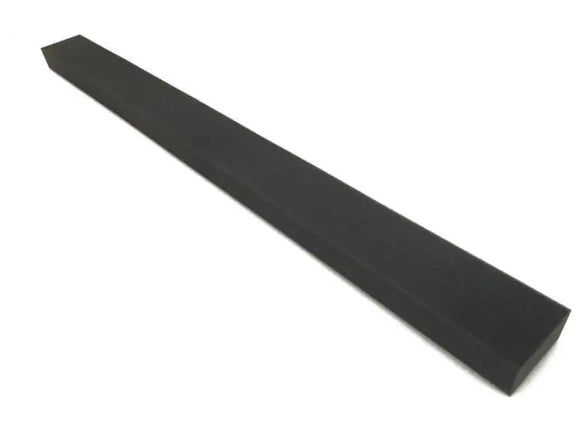

- Each pad is 2" (50mm) high, 4" (100mm) wide and 48" (1220mm) long.
- All of Advanced Acoustics products are precision cut.
- The colour of the Drum Isolation Pads Risers are black.
What Are The Benefits?

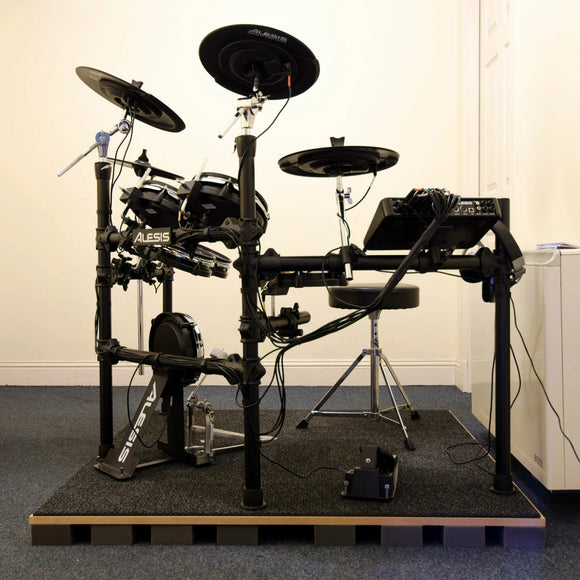

These Drum Isolation Platforms work by de-coupling your drum kit from the floor. This is turn reduces the amount of vibration passing through the floor when striking the drum. This then will reduce the impact noise that is heard in the floor below and rooms next door.
The vibration absorbing foam is a high load bearing foam and is designed to be stable when a drum kit and its operator is sat on it. The vibration absorbing strips sit under a sheet of 25mm ply or MDF (sheet is not supplied) to de-couple the drum kit from the rest of the room.
Care is taken in optimising size, profile, foam cell structure and foam density to present a product that offers high visual and acoustic value. Durability is high on our list of priorities too, we manufacture a foam that won't crumble and turn to dust and won't change colour as soon as you set it in the room.
The bottom line is that the Drum Isolation Pad Kit will assist both you and your room in working to it's full potential.
Where Can I Use Them?
There are a wide range of applications for our acoustic products including:
- High End Professional Studios
- Home Studios
- Rehearsal Rooms
- Home Cinemas
- Dedicated Listening Rooms
- And more
What Are The Technical Details?
||Drum Isolation Kit 6x8
|Individual Isolation Pad Size
||2" x 4" x 48" (50mm x 100mm x 1220mm)
|Quantity Of Pads Per Box
||8 (enough to create a platform size no larger than 6ft x 8ft)
||2" (50mm) plus the thickness of MDF or Ply (not included with this kit)
|Acoustic Foam Colour
|Acoustic Foam Density
|Acoustic Foam Composition
||High Load Bearing Open Cell Polyurethane Acoustic Foam
||Crib 5 and Schedule 1, Part 1 of the Furnishings and Furniture (fire)(safety) Regulations 1988 (amended 1989)
Please note: MDF, Carpet and Drum Kit is NOT included in this kit.
Included in the kit are 8x platform strips to sit the platform on. With this kit you need to purchase your own sheet material separately. We would recommend that you use 25mm Ply or MDF. The kit will build a platform sized 1.8m x 2.4m. If you’d prefer to create a smaller platform this is perfectly fine, however you will still need to use the full complement of platform strips for adequate weight support. If using the full size of platform you will need to glue the foam strips to the backside of the boards with a 475mm gap between each strip. If using less you boards you will need to calculate the correct gap between each strips so that they are distributed evenly.
We would recommend that you begin by laying the platform you have sourced out on the floor upside down. Next lay the platform strips in place on the platform making sure that the 2.4m edges of the platform and the edge of the strips are flush. The strips should be placed so that they are 100mm wide and 50mm tall. The strips may be slightly long but they can be compressed to fit the board it required. Once you have laid all the strips out and they are evenly distributed you can now glue the strips to the boards using our contact adhesive (not supplied). If the platform is make up of two or more boards you will need to fix them together so that they don’t come apart.
Once all the strips are glued in place you can now flip the platform over so that it is strip side down, board side up. The platform is now ready to use. If you wish you can fit carpet on top of the platform or our Silent Floor Ultra for that extra level of impact noise reduction, followed by carpet.
